8500 Lumen High Brightness Short Throw LP Laser Projectors WUXGA

Product Name : Laser Projector

Brightness : 8500 Lumens

Resolution : 1920x1080

Display Technology : DLP

Projection Type : Short Throw

Light Source : Laser

Contrast : 5000000:1

Focus/Zoom : Manual

Len Shift : Yes

Keystone Correction : Yes

Brand Name : SMX

Model Number : MX-DL820U

Certification : ISO, CE

Place of Origin : China

MOQ : 1

Payment Terms : ,T/T,Western Union

Supply Ability : 10000 pcs/monthly

Delivery Time : 7-15 days

Packaging Details : Carton

Contact Now


8500 Lumen High Brightness Short Throw LP Laser Projectors WUXGA

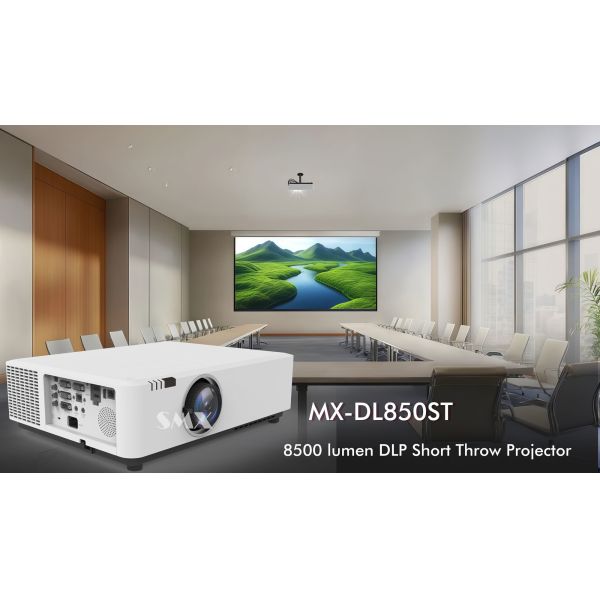

The MX-DL850ST is a projector that boasts 8,500 lumens of high brightness and a Full HD resolution. Designed for those who demand excellence in meeting rooms, it combines advanced laser technology with precise optical engineering to provide an exceptional viewing experience, even from a short distance.


Key Features at a Glance:

  • 8,500 Lumens Laser Brilliance: Experience vibrant, true-to-life colours and crystal clarity, even in brightly lit environments. Our advanced laser phosphor light source ensures consistent brightness and colour for over 20,000 hours.

  • Short Throw Magic: Eliminate shadows, reduce distracting fan noise, and maximize your space.

  • Native Full HD Resolution (1920 x 1080) with Pixel-Perfect DLP: Enjoy every detail with stunning clarity. The advanced DLP chip and Full HD resolution allow you to see exactly what the creator intended, without any pixelation, even from close range.

  • Lens Shift & Zoom: Installation is a breeze. Adjust the image position both vertically and horizontally with precision using the lens shift, all while maintaining image quality and avoiding digital keystone correction.

  • Cinematic 5,000,000:1 Dynamic Contrast Ratio: Experience the deepest blacks and the brightest whites simultaneously. Our dynamic laser iris and advanced processing create breathtaking depth and dimension, revealing shadow details you've never seen before.

  • Integrated 10W High-Fidelity Speaker: Enjoy rich, room-filling audio for everyday viewing. The downward-firing 10W full-range speaker delivers clear dialogue and impactful sound, making it perfect for sports, TV, and casual viewing without the need for an external sound system.

Ideal For:

  • The ultimate dedicated home theatre room
  • Luxury living rooms with ambient light
  • High-end boardrooms and executive presentation suites
  • Anyone who refuses to compromise on quality


8500 Lumen High Brightness Short Throw LP Laser Projectors WUXGA



Specification


Key Parts
　 Model No. MX-DL850ST
Resolution 1080P
Brightness(Ansi Lumen) 8500
Overall Spec
Panel Display Panel 0.65" DMD
Display Technology DLP
Native Resolution 1080P (1920 x 1080)
Light source Life time Normal mode 20,000hrs
ECO1 mode 30,000hrs
Projection Lens F 2.4
f 9.66mm-11.65mm
Zoom/Focus Manual
Throw Ratio 0.647(wide)~0.782(tele)
Zoom Ratio 1.2
Screen size 80-300inch
Lens Shift V:＋42%～-10%, H:±8%
CR Contrast Ratio 5,000,000:1
Noise Noise(dB) 39dB(Normal) 36dB(ECO)
Uniformity Uniformity 95%
AR Aspect Ratio Native:16:9 Compatible: 4:3/16:10
Terminal(I/O port)
Input VGA *2
HDMI 1.4B(IN) *2
HD BaseT *1(Optional)
Video *1
Audio L (RCA) *1
Audio R (RCA) *1
Audio in
(mini jack,3.5mm)		 *1
Output VGA *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
USB (Type A) only supports 5V *1
General Spec
Audio Speaker 10W*1
Power Consumption Power Requirements 100~240V@ 50/60Hz
Power Consumption
(Normal) (Max)		 670
Power Consumption
(ECO1) (Max)		 520
ECO Standby Mode Power Consumption <0.5W
Temp.&Humidity Operating Temp. 0m≤Altitude≤1700m, Ambient0℃~50℃
1700m＜Altitude＜3000m, Ambient 0℃~40℃
Operating Thumidity. 20-85%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other Functions
Keystone Keystone Correction
(Lens@center)		 V:±30°
4 Corner Correction
LAN Control LAN Control-RoomView (Crestron) Yes
LAN Control-- AMX Discovery Yes
LAN Control-- PJ Link Yes
Others 360° projection Yes
3D Yes
Dimension&Weight
　 MAX Dimensions (WxDxH mm) 460(W)*355(D)*142.6(H)
Net. Weight (KG) ~10KG
Packaging Size
(WxDxH mm)		 574(W)*554(D)*268(H)
Gross. Weight (KG) 12.5kg
Accessory
　 Standard Accessories Power cord, HDMI cable Remote control
