SMX 4800 Lumen Short Throw Laser Projector with WUXGA Resolution for Home Theater
The SMX MX-ST4800U is a short-throw laser projector designed to project large images from a short distance. Unlike traditional projectors, which require more distance between the projector and the screen to display a large image, short-throw projectors can produce big images even when placed close to the projection surface. This makes them ideal for use in immersive projection, small rooms, classrooms, meeting spaces, and home entertainment setups where space is limited.
Short Throw Distance
The 0.44:1 throw ratio means that the projector can display a large image from a short distance. This is ideal for environments where space is limited or where you want to avoid shadows on the screen when presenting.
High Brightness
With 4800 lumens of brightness, this projector can produce vivid and clear images even in well-lit rooms. The high brightness level ensures that the projected content remains visible and impactful in various lighting conditions.
WUXGA Resolution
The WUXGA resolution (1920 x 1200 pixels) provides sharp and detailed imagery, making it suitable for displaying high-definition content such as videos, presentations, and graphics with crisp clarity and detail.
Laser Light Source
Laser projectors offer several advantages over traditional lamp-based projectors, including longer lifespan, consistent brightness over time, quick startup and shutdown times, and reduced maintenance requirements. The laser light source also contributes to a wider color gamut and better color accuracy.
Reduced Glare and Shadows
Short-throw projectors like this one can help reduce glare and shadows, which might be a concern with standard-throw projectors, especially in smaller spaces or when the presenter needs to move around without obstructing the projected image.
Specification
| Model No. | MX-ST4800U |
| Overall Spec |
| Light source Lifetime | Light source | NICHIA LASER |
| FullNirmal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs(TBD) |
| ECO2 mode | TBD |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6 |
| f | 6.39mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.44:1 |
| Screen size | 55-300 inch |
| CR | Dynamic Contrast Ratio
(FOFO) | 5,000,000:1 |
| Noise | Noise(dB) | TGT:
37dB(Normal) 27dB(ECO1) |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI | *2 |
| Video | *1 |
Audio in
(mini jack,3.5mm) | *1 |
| Audio in (RCA×2) <Audio L/R> | *1 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| Output | VGA | *1 |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 |
| LAN | *1 |
| General Spec |
| Audio | Speaker | 16W*1 |
| Other Functions |

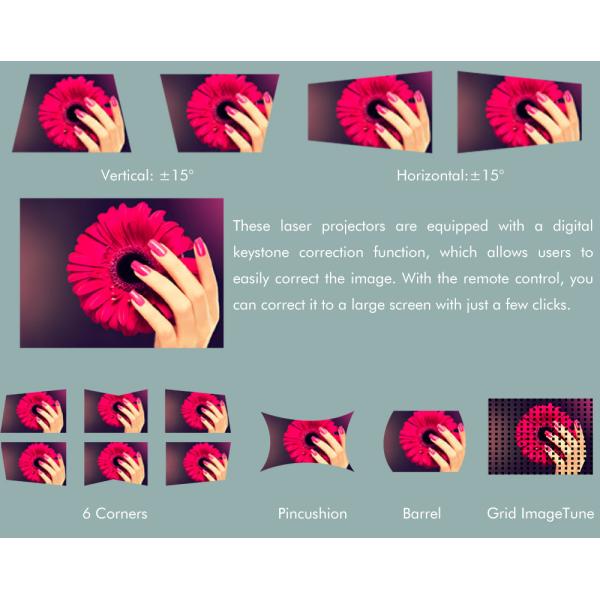

| Keystone | Keystone Correction
(Lens@center) | V: ±15° H: ±15°
Pincushion/Barrel Correction 4 corner
6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
LAN Control--
AMX Discovery | Yes |
| LAN Control--PJ Link | Yes |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Others | 360° projection | Yes |
| Dimension&Weight |
| | Product (WxDxH mm) | 390*319*143; With lens protrusion |
| Net. Weight (KG) | 5.5Kg |
| Packaging (WxDxH mm) | 492*443*239 |
| Gross. Weight (KG) | ~7Kg |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control |
Lifetime
Speaker
Resolution
Keystone Correction
LAN Control
Projection Distance
Product Photo
